Lacquered Aluminium Tape

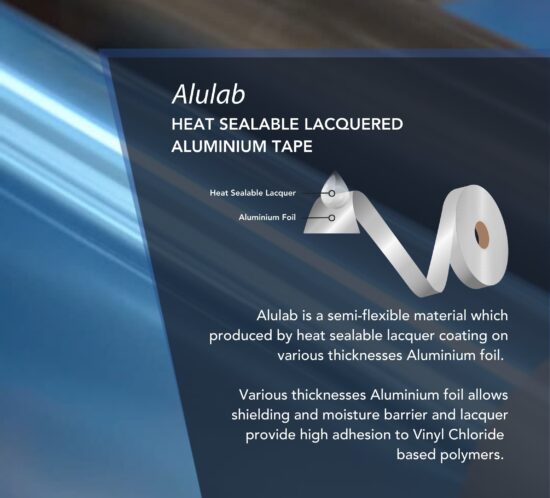

Lacquered Aluminium Tape (ALULAB) is a semi-flexible material which produced by heat sealable lacquer coating on various thicknesses Aluminium foil.

DijitalPort offers special surface lacquering developed for high adhesion in cable applications. The developed lacquer is activated by heat and offers excellent adhesion even at low temperatures.

Various thicknesses Aluminium foil allows shielding and moisture barrier and lacquer provide high adhesion to Vinyl Chloride based polymers.

DijitalPort PVC Lacquered Aluminium Tape
Type & Structures

Alulab VC
SINGLE SIDE LACQUERED ALUMINIUM TAPE

Single side lacquering allows one face adhesion.



Materials & Thickness

Aluminium Foil: 100, 150 and 200µm

Lacquiring: 5µm



Applications

Telecommunication, Low & Medium Voltage Cables.



Also Known As

Sealing Al, Alu/PVC, Lacquer Alu Tape, Strip.

Alulab VD
Double Side Lacquered Aluminium Tape

Double side lacquering allows both face adhesion.



Materials & Thickness

Aluminium Foil: 100, 150 and 200µm

Lacquiring: 5µm



Applications

Telecommunication, Medium & High Voltage Cables.



Also Known As

Lacquered Alu Tape, Strip.

Alulab Special
Special Request for Lacquered Aluminium Tape

If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

    LET US KNOW YOUR REQUEST
    Type & Structures
    SINGLE SIDED

    Alulab VC
    SINGLE SIDE LACQUERED ALUMINIUM TAPE

    Single side lacquering allows one face adhesion.



    Materials & Thickness

    Aluminium Foil: 100, 150 and 200µm

    Lacquiring: 5µm



    Applications

    Telecommunication, Low & Medium Voltage Cables.



    Also Known As

    Sealing Al, Alu/PVC, Lacquer Alu Tape, Strip.

    DOUBLE SIDED

    Alulab VD
    Double Side Lacquered Aluminium Tape

    Double side lacquering allows both face adhesion.



    Materials & Thickness

    Aluminium Foil: 100, 150 and 200µm

    Lacquiring: 5µm



    Applications

    Telecommunication, Medium & High Voltage Cables.



    Also Known As

    Lacquered Alu Tape, Strip.

    SPECIAL REQUEST & REQUEST FORM

    Alulab Special
    Special Request for Lacquered Aluminium Tape

    If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

      LET US KNOW YOUR REQUEST
      MEDIA GALLERY
      MEDIA GALLERY

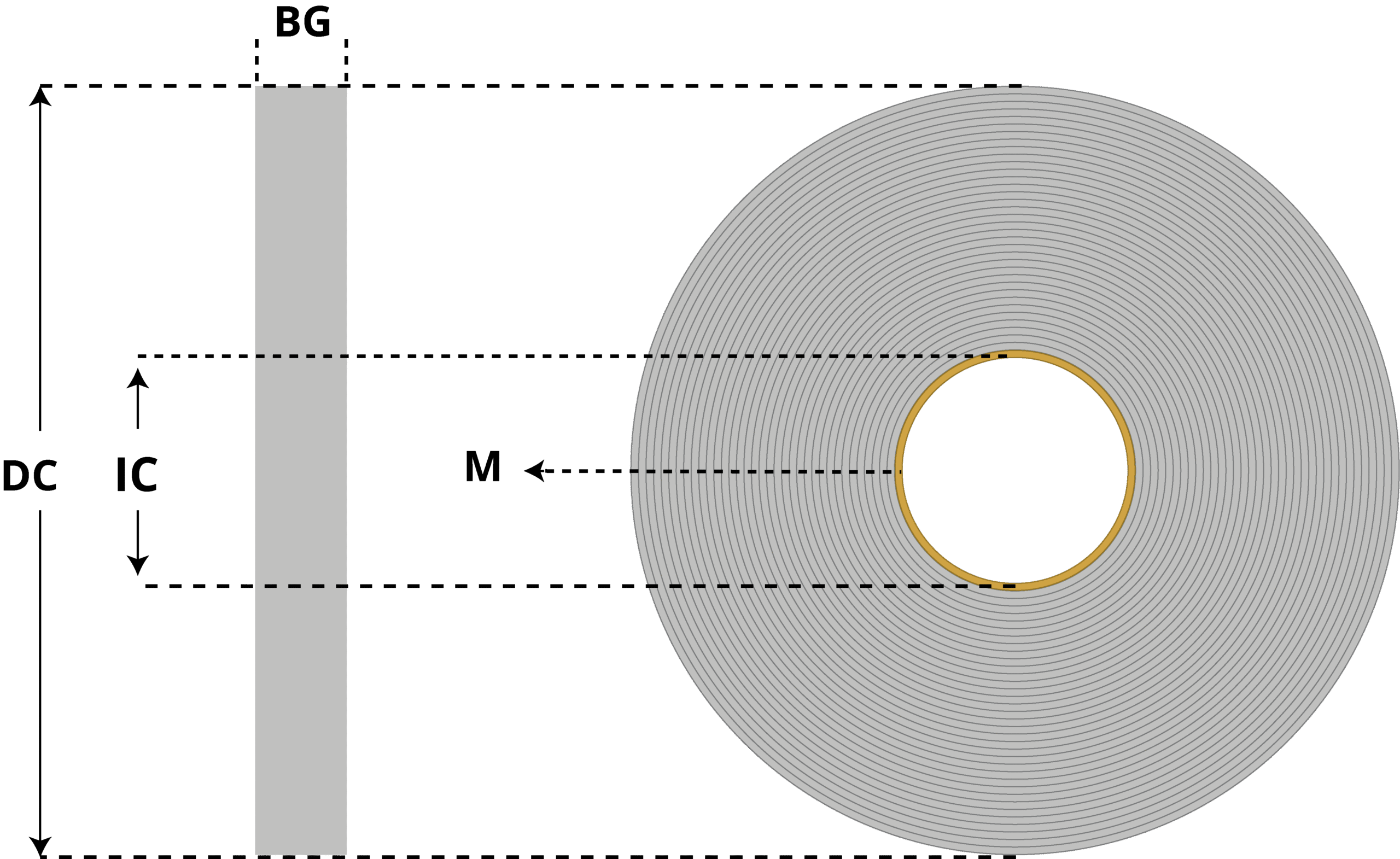

      Rewinding & Packing
      • Pad (Disc) Rewinding
      • Min. 10mm Width
      • Steel Cores
      • 76.2, 120 & 152.4mm Core Inside Diameter
      • Max. 1300mm Roll Outside Diameter
      Downloads
      Rewinding & Packing
      • Pad (Disc) Rewinding
      • Min. 10mm Width
      • Steel Cores
      • 76.2, 120 & 152.4mm Core Inside Diameter
      • Max. 1300mm Roll Outside Diameter
      Downloads
