Glass Fiber Tape (GLAVEN) is a non-alkali E-glass class glass fiber woven tape which specially woven for heat-resistance up to 550°C.
The tape has extremly high mechanical and flexible properties to provide more best working conditions and high heat-resistance.
Woven tape commonly using for signal, control and instrument cables.
Type & Structures
Glaven GE
GLASS FIBER TAPE
Woven white color tape.
Materials & Weights
Tape: 100, 125, 150 and 175gms
Applications
Signal, Control and Instrument Cables.
Also Known As
Fiberglass tape, glass woven fabric, fibre glass, glassfabric woven strip.
Glaven Special
Special Request for Glass Fiber Tape
If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.
Type & Structures
GLASS FIBER TAPE
Glaven GE
GLASS FIBER TAPE
Woven white color tape.
Materials & Weights
Tape: 100, 125, 150 and 175gms
Applications
Signal, Control and Instrument Cables.
Also Known As
Fiberglass tape, glass woven fabric, fibre glass, glassfabric woven strip.
SPECIAL REQUEST & REQUEST FORM
Glaven Special
Special Request for Glass Fiber Tape
If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.
MEDIA GALLERY
MEDIA GALLERY
Rewinding & Packing
Inside Diameter
76.2, 120 & 152.4mm
IC
Outside Diameter
Max.700mm Roll
DC
Tape Width
Min. 5mm
BG
Core Material
Paper & Plastic
M
Inside Diameter
76.2mm
IC
Outside Diameter
Max.460mm Roll
DC
Tape Width
Min. 3mm
BG
Core Material
Paper & Plastic
M
Winding Length
40 – 350mm
SG
Core Length
40 – 350mm
MG
Rewinding & Packing

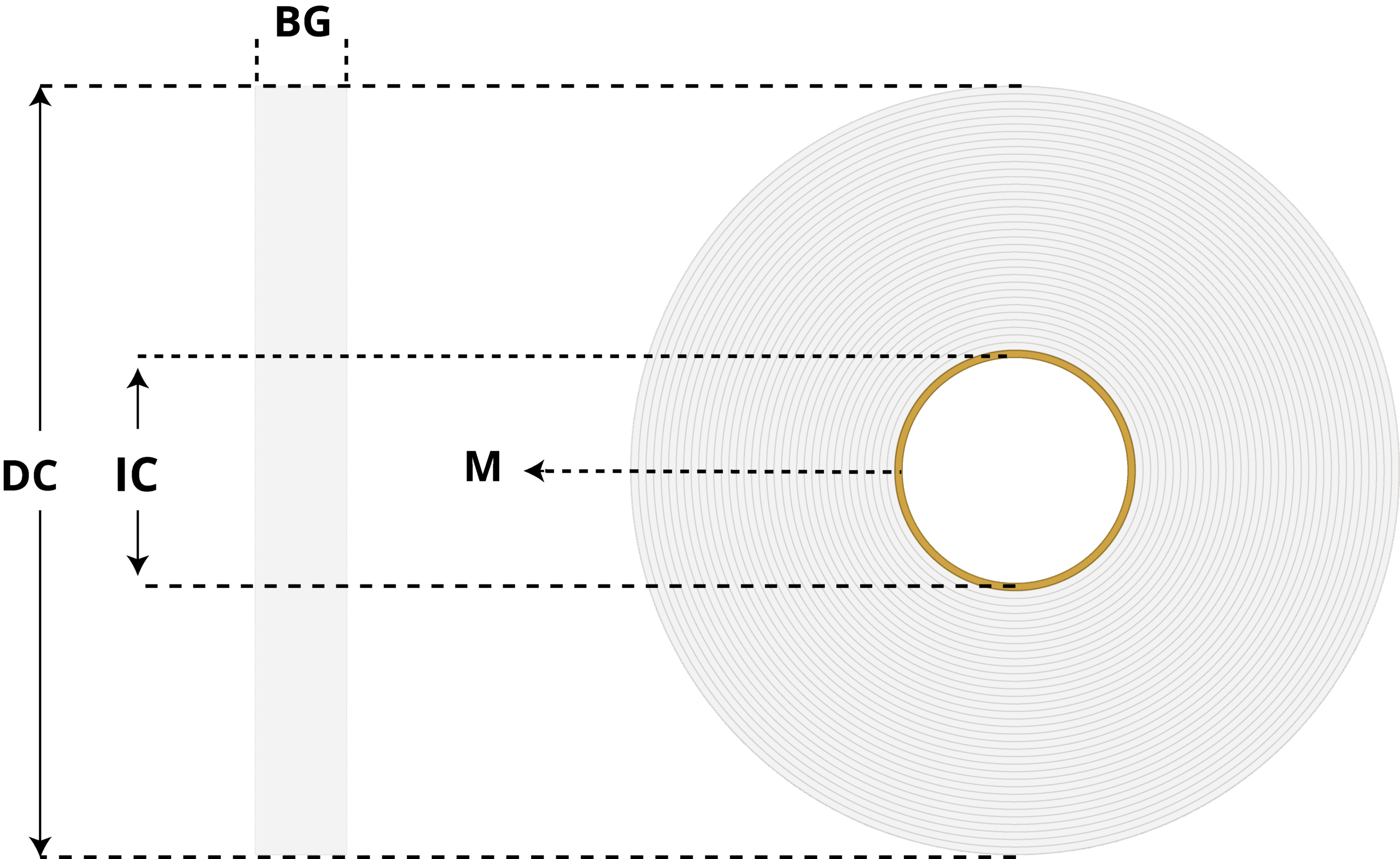

PAD (DISC) REWINDING
Inside Diameter
76.2, 120 & 152.4mm
IC
Outside Diameter
Max.700mm Roll
DC
Tape Width
Min. 5mm
BG
Core Material
Paper & Plastic
M

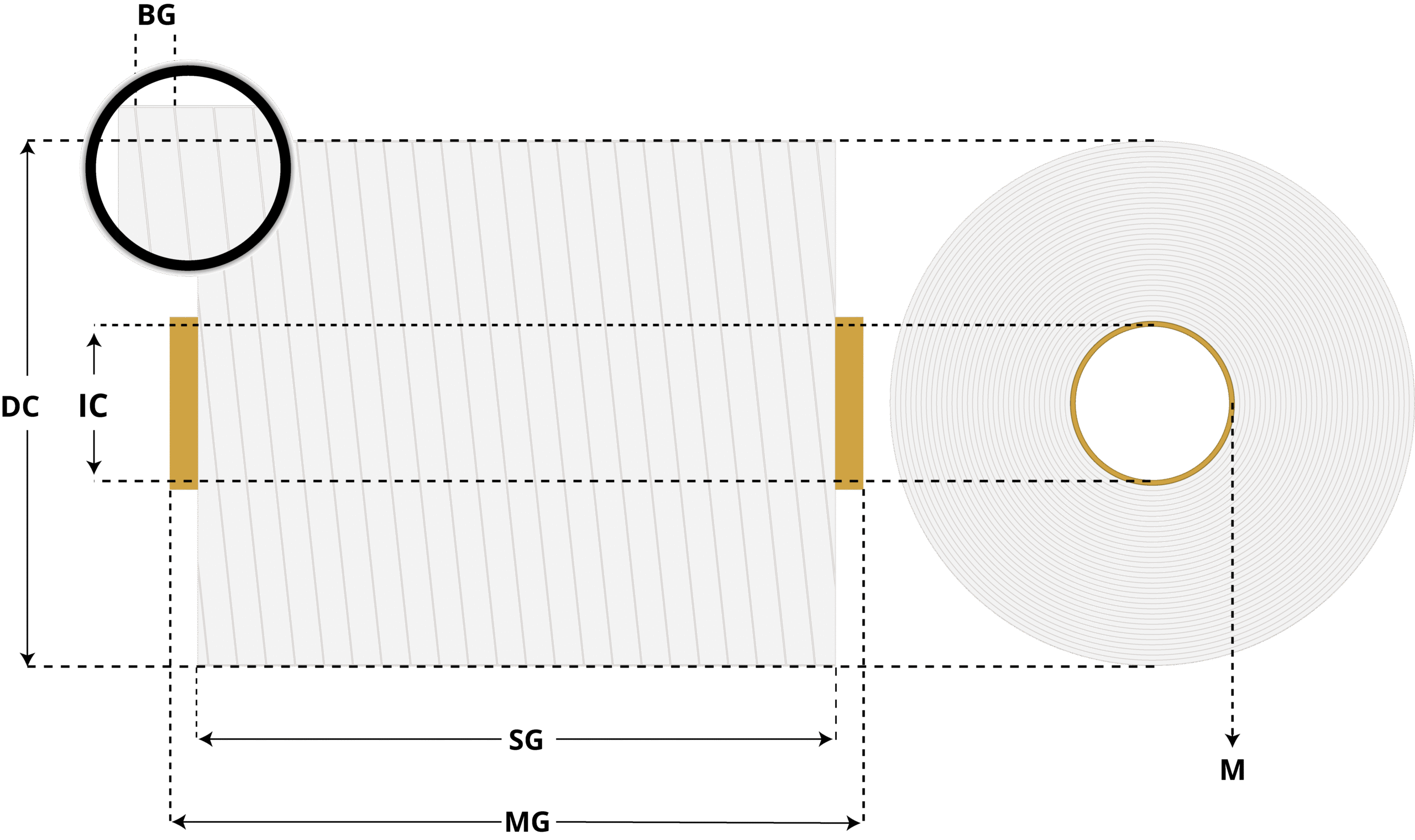

TRAVERSE (SPOOL) REWINDING
Inside Diameter
76.2mm
IC
Outside Diameter
Max.460mm Roll
DC
Tape Width
Min. 3mm
BG
Core Material
Paper & Plastic
M
Winding Length
40 – 350mm
SG
Core Length
40 – 350mm
MG
Downloads
Downloads
OTHER FIRE RESISTANT TAPES
Mica Tape
Mica Tape is a Glass fabric or/and Polyester film supported mica tape with impregnated heat-resistant silicone resins. Mica has Phlogopite, Muscovite and Synthetic types.
