Copolymer Coated Aluminium Tape

Copolymer Coated Aluminium Tape (ALUPOL) is a semi-flexible composite material which various thicknesses Aluminium foil coated with Copolymer material.

DijitalPort assures heat-seal coating technology to avoid delamination issues which may caused some problems of cable applications. DijitalPort also prefers engineered Copolymer film such as Dupont EAA copoylmers to have excellent adhesion strength.

Various thicknesses Aluminium foil combining with Copolymer film, which Aluminium allows shielding and moisture barrier and Copolymer provide high adhesion feature for LLDPE, MDPE and HDPE polymer applications.

DijitalPort Copolymer Coated Aluminium Tape İmage
Type & Structures











Alupol US & UT
Single Side Copolymer Coated Aluminium Tape

Single side coating allows one face adhesion.



Materials & Thickness

Aluminium Foil: 80, 100, 150, 185, 200, 250, 300 and 350µm

Copolymer Film: 40, 50 and 60µm



Applications

Telecommunication Cables, Low & Medium Voltage Cables.



Also Known As

Alu/Copoly, Alu/EAA, Alu/PE Tape, Strip.











Alupol UP & UR
Double Side Copolymer Coated Aluminium Tape

Double side coating allows both face adhesion.



Materials & Thickness

Aluminium Foil: 100, 150, 185, 200 and 250µm

Copolymer Film: 50 and 60µm



Applications

Telecomminication Cables, Fiber Optic Cables, Medium & High Voltage Cables.



Also Known As

Copoly/Alu/Copoly, EAA/Al/EAA, PE+Alu+PE Tape, Strip.











Alupol Special
Special Request for Copolymer Coated Aluminium Tape

If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

    LET US KNOW YOUR REQUEST

    Type & Structures

    SINGLE SIDED

    Alupol US & UT
    Single Side Copolymer Coated Aluminium Tape

    Single side coating allows one face adhesion.



    Materials & Thickness

    Aluminium Foil: 80, 100, 150, 185, 200, 250, 300 and 350µm

    Copolymer Film: 40, 50 and 60µm



    Applications

    Telecommunication Cables, Low & Medium Voltage Cables.



    Also Known As

    Alu/Copoly, Alu/EAA, Alu/PE Tape, Strip.

    DOUBLE SIDED

    Alupol UP & UR
    Double Side Copolymer Coated Aluminium Tape

    Double side coating allows both face adhesion.



    Materials & Thickness

    Aluminium Foil: 100, 150, 185, 200 and 250µm

    Copolymer Film: 50 and 60µm



    Applications

    Telecomminication Cables, Fiber Optic Cables, Medium & High Voltage Cables.



    Also Known As

    Copoly/Alu/Copoly, EAA/Al/EAA, PE+Alu+PE Tape, Strip.

    SPECIAL REQUEST & REQUEST FORM

    Alupol Special
    Special Request for Copolymer Coated Aluminium Tape

    If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

      LET US KNOW YOUR REQUEST

      MEDIA GALLERY
      MEDIA GALLERY

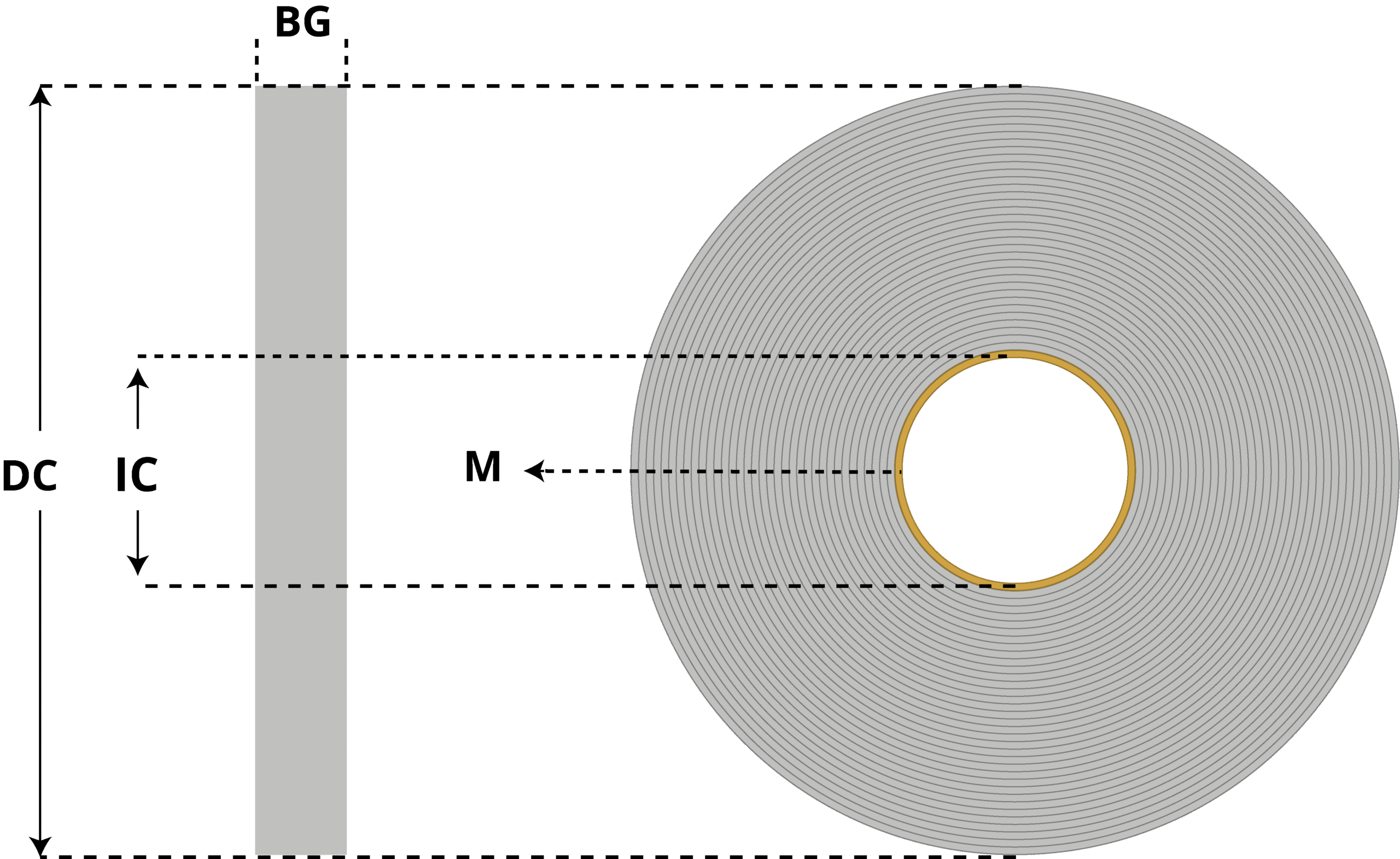

      Rewinding & Packing

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.1300mm Roll

      DC

      Tape Width

      Min. 10mm

      BG

      Core Material

      Steel, Aluminium, Plastic

      M

      Rewinding & Packing

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.1300mm Roll

      DC

      Tape Width

      Min. 10mm

      BG

      Core Material

      Steel, Aluminium, Plastic

      M
