Aluminium Polyester Tape

Aluminium Polyester Tape (ALUSER) is a flexible composite material which have been structured by various thicknesses Aluminium foil and Polyester film lamination.

DijitalPort have been closely following and focusing on the product, requirements and technology to provide better quality and most ideal solution to cable manufacturers of these AL/PET laminations which had a wide usage in cable applications.

Various thicknesses and structures Aluminium foil and Polyester film combining to protect signal quality. Aluminium foil specially prevent external electromagnetic and electrostatic interferences and Polyester film assures high mechanical strength with electrical insulation of the composite material.

DijitalPort Aluminium Polyester Tape İmage
Type & Structures

Aluser TS & TR
Al/PET Tape

Double layer tape consists of Aluminium foil and Polyester film layers.



Materials & Thickness

Aluminium Foil: 9, 12, 15, 18, 20, 25, 30, 37, 40, 50 and 100µm

Polyester Film: 12, 15, 19, 23, 36, 50 and 75µm



Applications

Coaxial Cable, Data Cable and Low Voltage Cables.



Also Known As

Alu/PET, Alu+PET, AluPES, AlPES, Aluflex Tape, AlPET Foil, Alupet Strip.

Aluser TY & TV
Al/PET Lubricated Tape

Lubricating feature decreases friction of Aluminium foil surfaces.



Materials & Thickness

Aluminium Foil: 18, 25, 37, 40 and 50µm

Polyester Film: 12, 23 and 36µm



Applications

Data Cables.



Also Known As

Alu/PET Lubricated, Al/Mylar Greasy Tape, Foil, Strip.

Aluser TN & TM
Al/PET/Al Tape

Double layer Aluminium foil prevent high external electromagnetic interferences.



Materials & Thickness

Aluminium Foil: 9, 12, 20 and 25µm

Polyester Film: 12, 15, 19 and 23µm



Applications

Coaxial Cables, Low Voltage Cables.



Also Known As

Alu/PET/Alu, Alu + PES + Alu Tape, Strip.

Aluser TC & TD
PET/AL/PET Tape

Double layer Polyester film provides high elongation, tensile strength and low friction.



Materials & Thickness

Aluminium Foil: 7, 9, 12, 25, 37 and 40µm

Polyester Film: 10, 12 and 23µm



Applications

Coaxial Cables & Data Cables.



Also Known As

PET+Alu+PET Tape, Strip.

Aluser Special
Special Request for Aluminium / Polyester Tape

If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

    LET US KNOW YOUR REQUEST

    Type & Structures

    AL/PET

    Aluser TS & TR
    Al/PET Tape

    Double layer tape consists of Aluminium foil and Polyester film layers.



    Materials & Thickness

    Aluminium Foil: 9, 12, 15, 18, 20, 25, 30, 37, 40, 50 and 100µm

    Polyester Film: 12, 15, 19, 23, 36, 50 and 75µm



    Applications

    Coaxial Cable, Data Cable and Low Voltage Cables.



    Also Known As

    Alu/PET, Alu+PET, AluPES, AlPES, Aluflex Tape, AlPET Foil, Alupet Strip.

    AL/PET LUBRICATED

    Aluser TY & TV
    Al/PET Lubricated Tape

    Lubricating feature decreases friction of Aluminium foil surfaces.



    Materials & Thickness

    Aluminium Foil: 18, 25, 37, 40 and 50µm

    Polyester Film: 12, 23 and 36µm



    Applications

    Data Cables.



    Also Known As

    Alu/PET Lubricated, Al/Mylar Greasy Tape, Foil, Strip.

    AL/PET/AL

    Aluser TN & TM
    Al/PET/Al Tape

    Double layer Aluminium foil prevent high external electromagnetic interferences.



    Materials & Thickness

    Aluminium Foil: 9, 12, 20 and 25µm

    Polyester Film: 12, 15, 19 and 23µm



    Applications

    Coaxial Cables, Low Voltage Cables.



    Also Known As

    Alu/PET/Alu, Alu + PES + Alu Tape, Strip.

    PET/AL/PET

    Aluser TC & TD
    PET/AL/PET Tape

    Double layer Polyester film provides high elongation, tensile strength and low friction.



    Materials & Thickness

    Aluminium Foil: 7, 9, 12, 25, 37 and 40µm

    Polyester Film: 10, 12 and 23µm



    Applications

    Coaxial Cables & Data Cables.



    Also Known As

    PET+Alu+PET Tape, Strip.

    SPECIAL REQUEST & REQUEST FORM

    Aluser Special
    Special Request for Aluminium / Polyester Tape

    If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

      LET US KNOW YOUR REQUEST

      MEDIA GALLERY
      MEDIA GALLERY
      Rewinding & Packing

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.700mm Roll

      DC

      Tape Width

      Min. 5mm

      BG

      Core Material

      Paper & Plastic

      M

      Inside Diameter

      76.2mm

      IC

      Outside Diameter

      Max.460mm Roll

      DC

      Tape Width

      Min. 3mm

      BG

      Core Material

      Paper & Plastic

      M

      Winding Length

      40 – 350mm

      SG

      Core Length

      40 – 350mm

      MG

      Rewinding & Packing

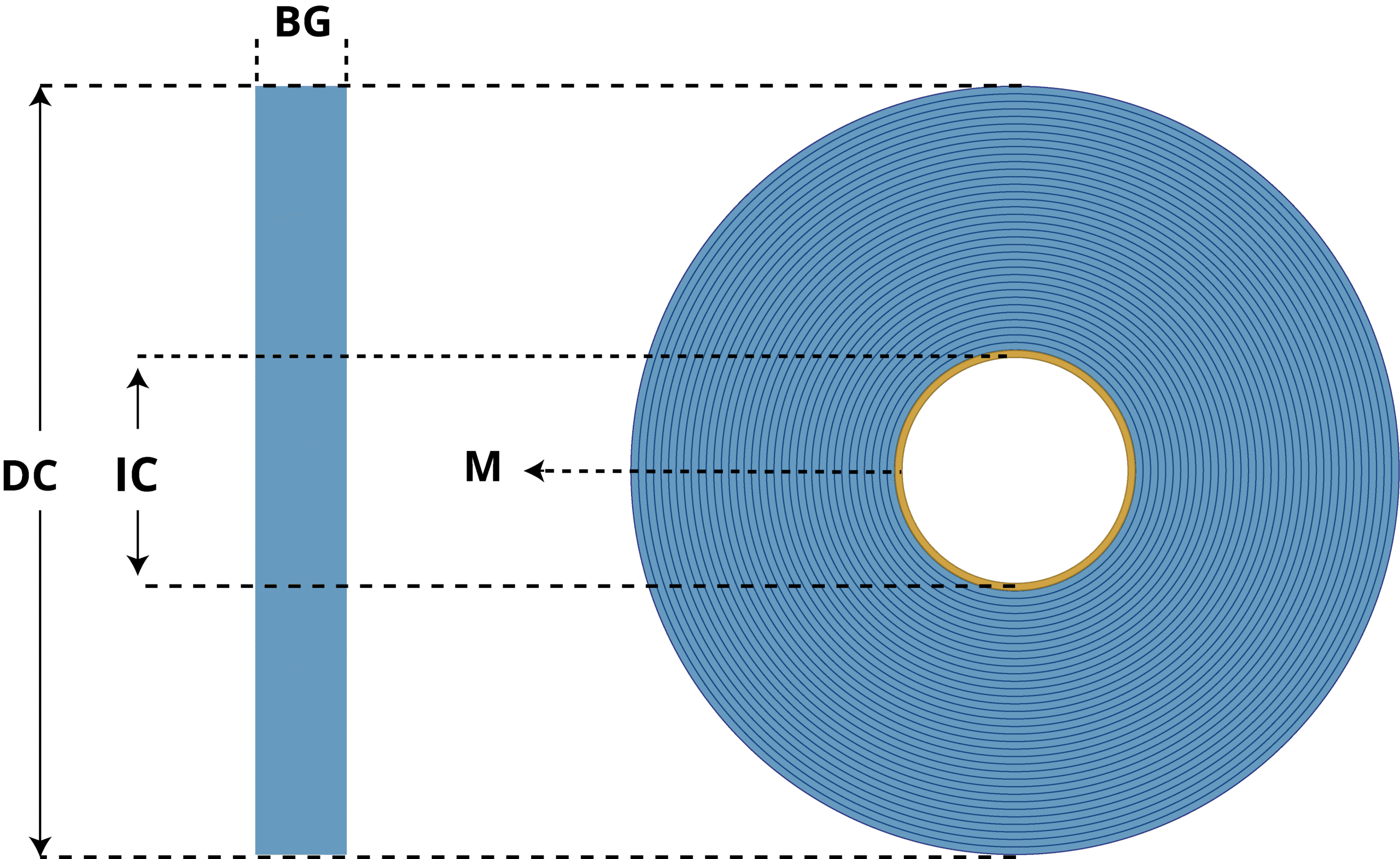

      PAD (DISC) REWINDING

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.700mm Roll

      DC

      Tape Width

      Min. 5mm

      BG

      Core Material

      Paper & Plastic

      M

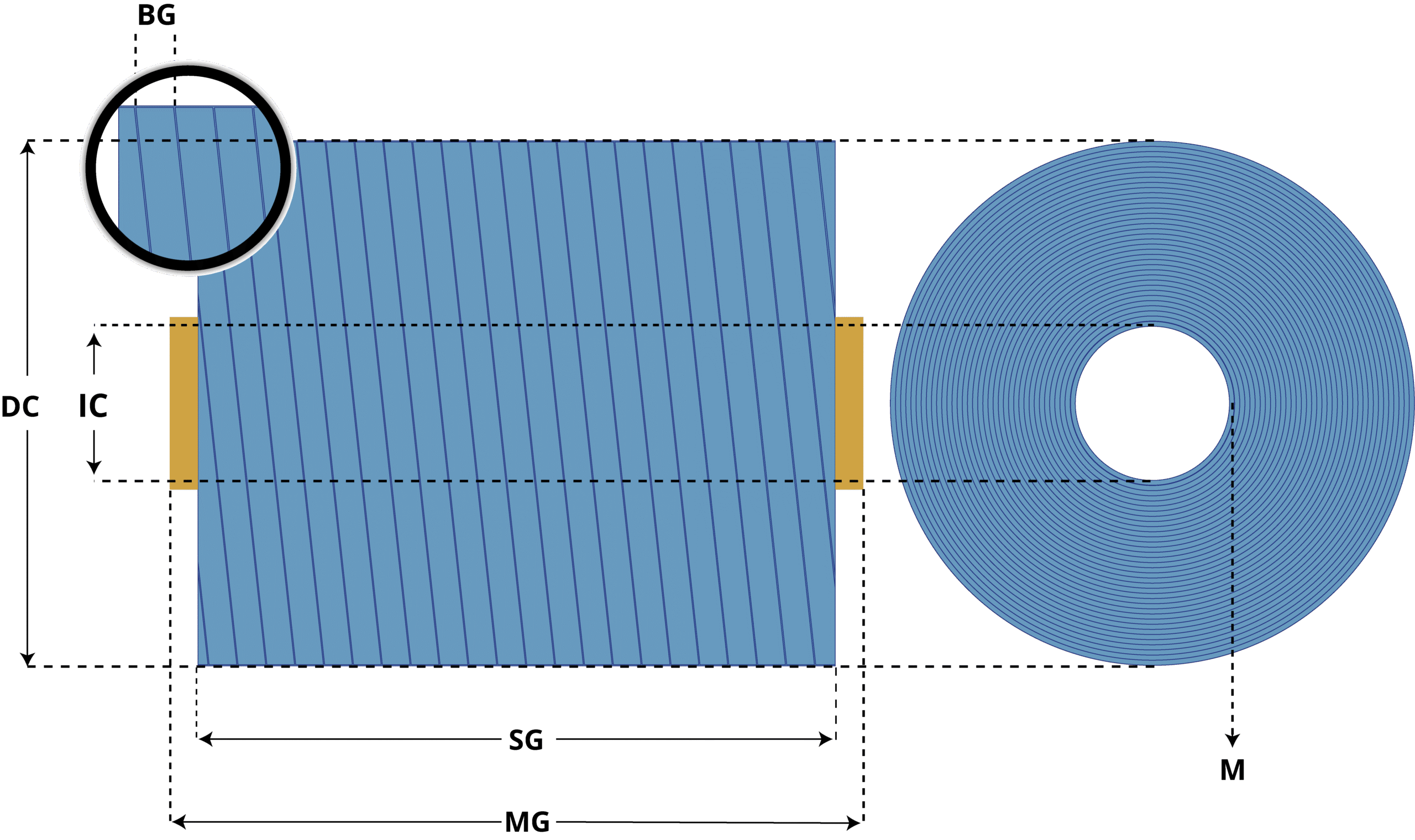

      TRAVERSE (SPOOL) REWINDING

      Inside Diameter

      76.2mm

      IC

      Outside Diameter

      Max.460mm Roll

      DC

      Tape Width

      Min. 3mm

      BG

      Core Material

      Paper & Plastic

      M

      Winding Length

      40 – 350mm

      SG

      Core Length

      40 – 350mm

      MG

      Downloads
      Downloads
      OTHER ALUMINIUM TAPES
      Lacquered Aluminium Tape is a semi-flexible material which produced by heat sealable lacquer coating on various thicknesses Aluminium foil.
      Lacquered Aluminium Tape

      Lacquered Aluminium Tape is a semi-flexible material which produced by heat sealable lacquer coating on various thicknesses Aluminium foil.

      Aluminium Tape is a semi-flexible tape which produces annealing process without any other surface treatment on various thicknesses Aluminium foil.
      Aluminium Tape

      Aluminium Tape is a semi-flexible tape which produces annealing process without any other surface treatment on various thicknesses Aluminium foil.

      Bondable Aluminium Tape is a flexible composite material which have been structured by various thicknesses Aluminium foil and Sealable film based lamination with supporting layer of Polyester film.
      Bondable Aluminium Tape

      Bondable Aluminium Tape is a flexible composite material which have been structured by various thicknesses Aluminium foil and Sealable film based lamination with supporting layer of Polyester film.

      Copolymer Coated Aluminium Tape is a semi-flexible composite material which various thicknesses Aluminium foil coated with Copolymer film.
      Copolymer Coated Aluminium Tape

      Copolymer Coated Aluminium Tape is a semi-flexible composite material which various thicknesses Aluminium foil coated with Copolymer film.
