Swellable Tape

Swellable Tape (NASOVN) is a non or semi conductive, non-woven and double sided swelling tape which contain super absorbent resin in natural white color and carbon impregnation black color.

DijitalPort provide super absorbent resin to high swelling rate on both side as equally and high tear strengh performance for better process conditions.

Non-conductive water blocking tapes are widely using for bedding, seperation and water blocking properties for fiber optic and special cables.

Semi-conductivity feature have been made by carbon impregnation on surface of non-woven material and final color became black.

DijitalPort Swelling Tape İmage
Type & Structures

Nasovn SV
Swelling Non-Conductive Tape

Non-woven, non-conductive, white color tape.



Materials & Thickness

Swelling Tape: 80, 90, 110 and 120gms



Applications

Fiber optic cables, marine cables, mining cables.



Also Known As

Water blocking fabric, swelling, swell tape, strip.

Nasovn SY
Semi-Conductive Swelling Tape

Non-woven, semi conductive black color tape.



Materials & Thickness

Swelling Tape : 65, 80, 100, 120, 150, 170 and 210gms



Applications

Power cables, marine cables, high voltage cables.



Also Known As

Semi-conductive Water-blocking fabric, swelling strip.











Nasovn Special
Special Request for Swelling Tape

If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

    LET US KNOW YOUR REQUEST
    Type & Structures

    NON-CONDUCTIVE

    Nasovn SV
    Swelling Non-Conductive Tape

    Non-woven, non-conductive, white color tape.



    Materials & Thickness

    Swelling Tape: 80, 90, 110 and 120gms



    Applications

    Fiber optic cables, marine cables, mining cables.



    Also Known As

    Water blocking fabric, swelling, swell tape, strip.

    SEMI-CONDUCTIVE

    Nasovn SY
    Semi-Conductive Swelling Tape

    Non-woven, semi conductive black color tape.



    Materials & Thickness

    Structure 1: 65, 80, 100, 120, 150, 170 and 210gms



    Applications

    Power cables, marine cables, high voltage cables.



    Also Known As

    Semi-conductive Water-blocking fabric, swelling strip.

    SPECIAL REQUEST & REQUEST FORM

    Nasovn Special
    Special Request for Swelling Tape

    If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

      LET US KNOW YOUR REQUEST
      MEDIA GALLERY
      MEDIA GALLERY
      Rewinding & Packing

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.700mm Roll

      DC

      Tape Width

      Min. 10mm

      BG

      Core Material

      Paper & Plastic

      M

      Inside Diameter

      76.2mm

      IC

      Outside Diameter

      Max.460mm Roll

      DC

      Tape Width

      Min. 8mm

      BG

      Core Material

      Paper & Plastic

      M

      Winding Length

      40 – 350mm

      SG

      Core Length

      40 – 350mm

      MG

      Rewinding & Packing

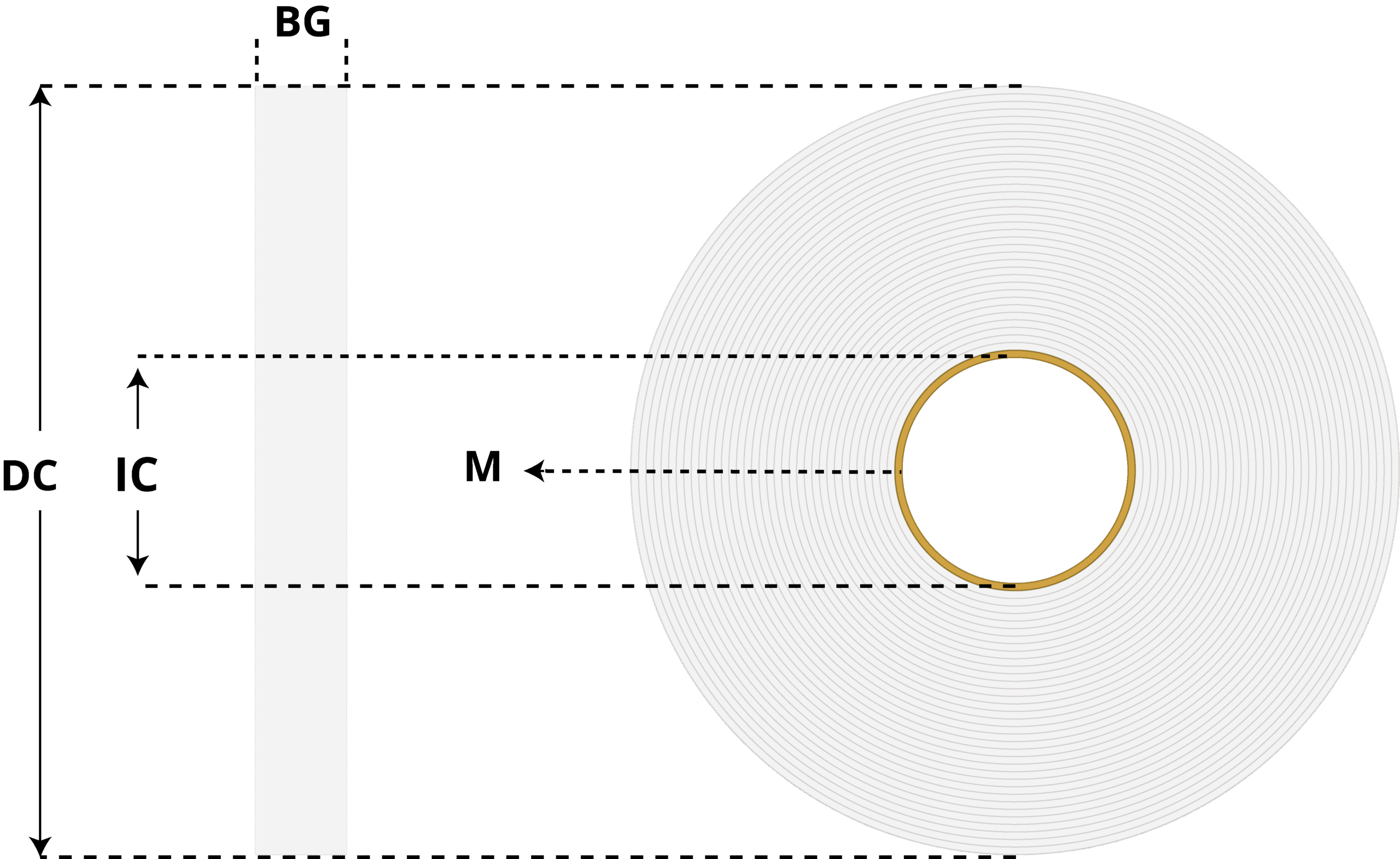

      PAD (DISC) REWINDING

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.700mm Roll

      DC

      Tape Width

      Min. 10mm

      BG

      Core Material

      Paper & Plastic

      M

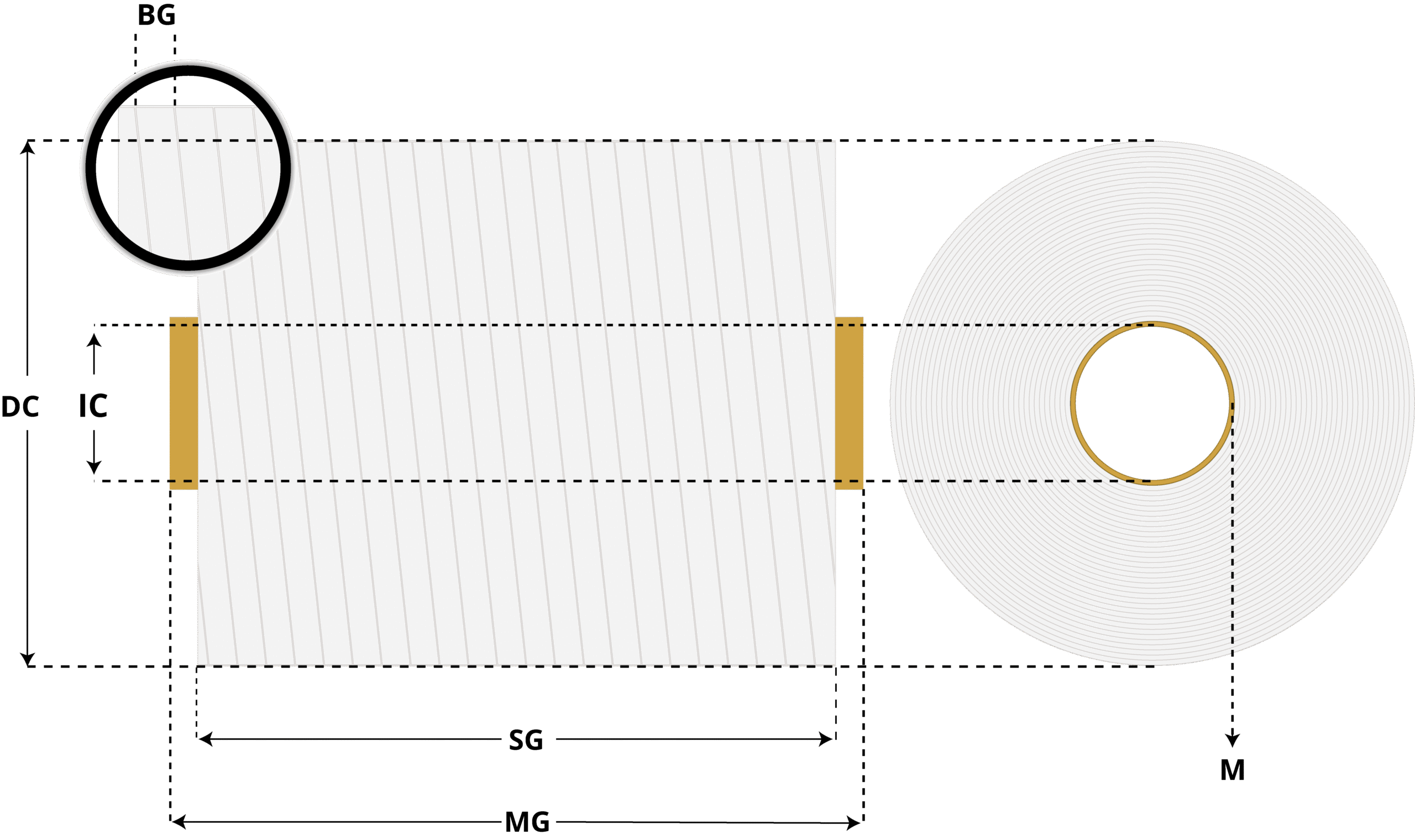

      TRAVERSE (SPOOL) REWINDING

      Inside Diameter

      76.2mm

      IC

      Outside Diameter

      Max.460mm Roll

      DC

      Tape Width

      Min. 8mm

      BG

      Core Material

      Paper & Plastic

      M

      Winding Length

      40 – 350mm

      SG

      Core Length

      40 – 350mm

      MG

      Downloads
      Downloads
      OTHER NON-WOVEN TAPES
      Non-Woven Polyester Tape

      Non-Woven Polyester Tape, is a non-conductive or semi-conductive and non-woven tape which produced micro diameter polyester short fibers with Carding technology in natural white color or carbon coated black color.
