Non-Woven Polyester Tape

Non-Woven Polyester Tape (NANOVN), is a non-conductive or semi-conductive and non-woven tape which produced micro diameter polyester short fibers with Carding technology in natural white color or carbon coated black color.

DijitalPort provide high tensile strength and smooth surface of non-woven tapes for high-end cable applications.

Non-conductive Non-woven tapes are usually preferred when economical binding, separation and heat barrier function requied in power, fiber optical and special cables.

Semi-conductivity feature have been made by carbon impregnation on surface of non-woven material and final color became black.

DijitalPort Non-Woven Polyester Tape İmage
Type & Structures

Nanovn NV & NY
Non-Woven Tape

Natural white color, non-woven, non-conductive, polyester fabric tape.



Materials & Thickness

Non-Woven Tape: 25, 40, 50, 75 and 100gms



Applications

Power, Middle & High Voltage Cables, Instrument Cables and Special Cables.



Also Known As

Polyester tape, non-woven fabric, fleece tape, non-conductive fabric strip.

Nanovn NC & ND
Semi-Conductive Non-Woven Tape

Black color, semi-conductive, polyester non-woven tape.



Materials & Thickness

Non-Woven Tape: 40, 50, 60, 80 and 100gms



Applications

Marine, Power, Instrument, Middle Voltage Cables.



Also Known As

Semi-conductive tape, black fabric, strip.

Nanovn Special
Special Request for Non-Woven Polyester Tape

If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

    LET US KNOW YOUR REQUEST
    Type & Structures

    NON-CONDUCTIVE

    Nanovn NV & NY
    Non-Woven Tape

    Natural white color, non-woven, non-conductive, polyester fabric tape.



    Materials & Thickness

    Non-Woven Tape: 25, 40, 50, 75 and 100gms



    Applications

    Power, Middle & High Voltage Cables, Instrument Cables and Special Cables.



    Also Known As

    Polyester tape, non-woven fabric, fleece tape, non-conductive fabric strip.

    SEMI-CONDUCTIVE

    Nanovn NC & ND
    Semi-Conductive Non-Woven Tape

    Black color, semi-conductive, polyester non-woven tape.



    Materials & Thickness

    Non-Woven Tape: 40, 50, 60, 80 and 100gms



    Applications

    Marine, Power, Instrument, Middle Voltage Cables.



    Also Known As

    Semi-conductive tape, black fabric, strip.

    SPECIAL REQUEST & REQUEST FORM

    Nanovn Special
    Special Request for Non-Woven Polyester Tape

    If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.

      LET US KNOW YOUR REQUEST
      MEDIA GALLERY
      MEDIA GALLERY
      Rewinding & Packing

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.700mm Roll

      DC

      Tape Width

      Min. 10mm

      BG

      Core Material

      Paper & Plastic

      M

      Inside Diameter

      76.2mm

      IC

      Outside Diameter

      Max.460mm Roll

      DC

      Tape Width

      Min. 5mm

      BG

      Core Material

      Paper & Plastic

      M

      Winding Length

      40 – 350mm

      SG

      Core Length

      40 – 350mm

      MG

      Rewinding & Packing

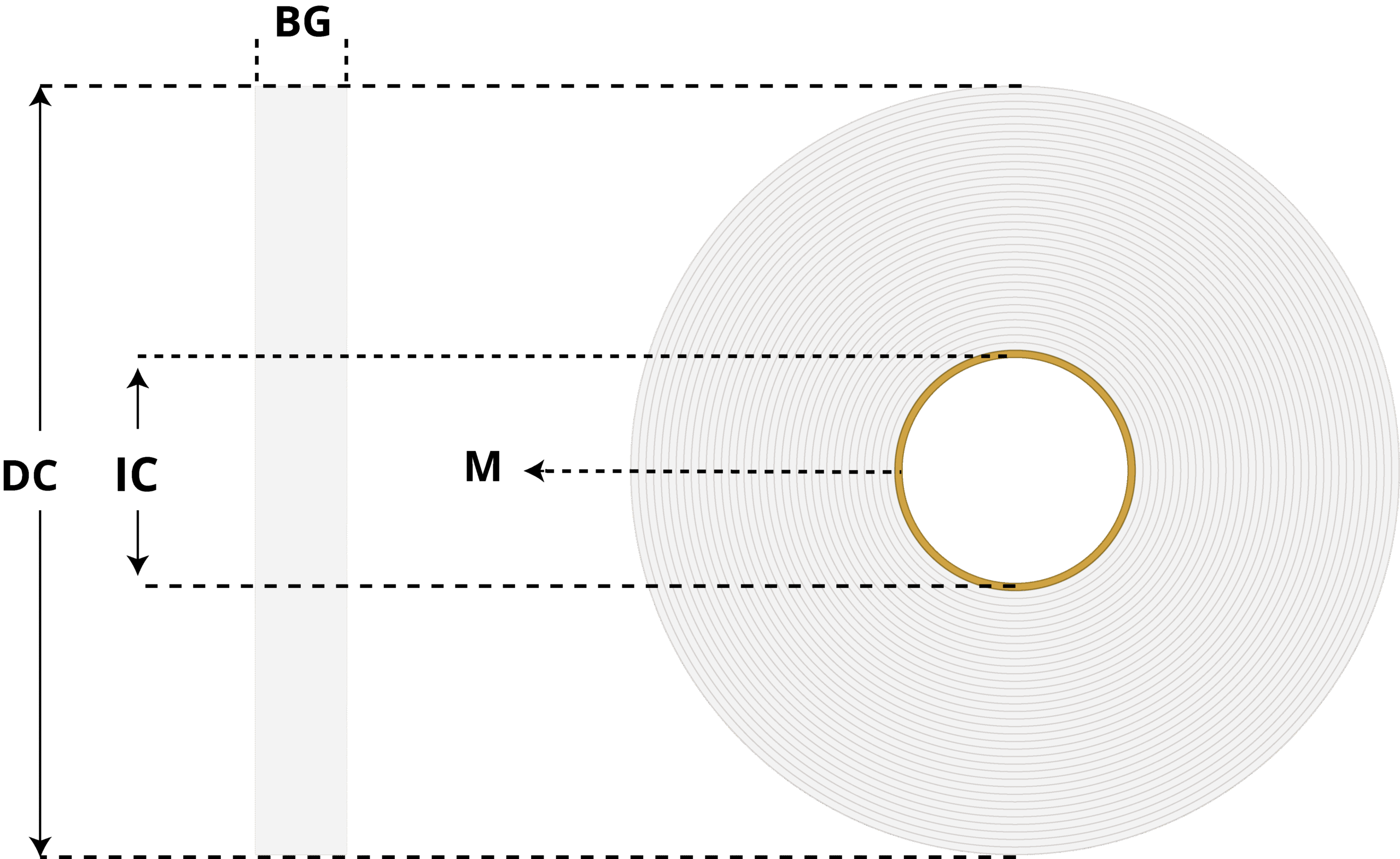

      PAD (DISC) REWINDING

      Inside Diameter

      76.2, 120 & 152.4mm

      IC

      Outside Diameter

      Max.700mm Roll

      DC

      Tape Width

      Min. 10mm

      BG

      Core Material

      Paper & Plastic

      M

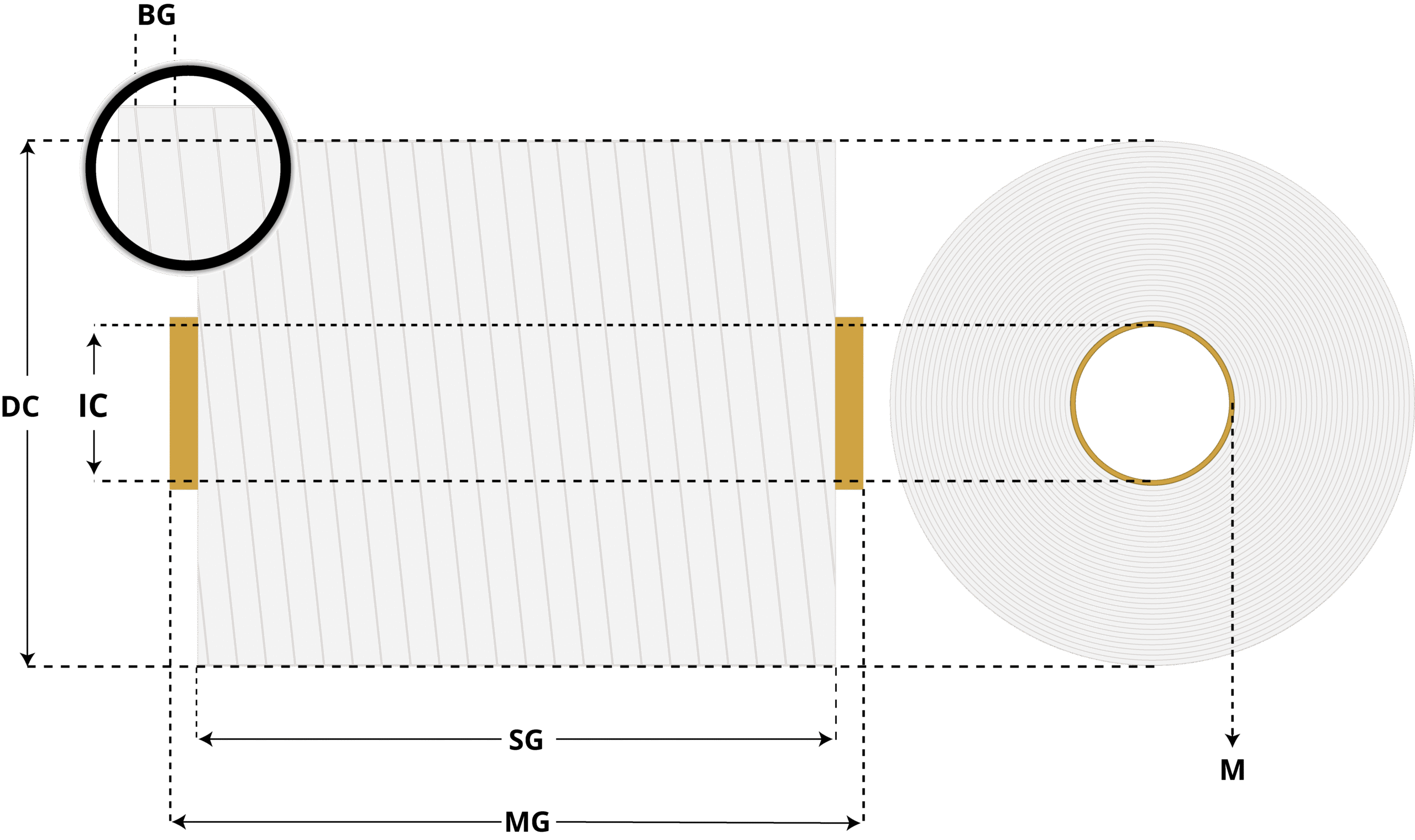

      TRAVERSE (SPOOL) REWINDING

      Inside Diameter

      76.2mm

      IC

      Outside Diameter

      Max.460mm Roll

      DC

      Tape Width

      Min. 5mm

      BG

      Core Material

      Paper & Plastic

      M

      Winding Length

      40 – 350mm

      SG

      Core Length

      40 – 350mm

      MG

      Downloads
      Downloads
      OTHER NON-WOVEN TAPES
      Swelling Tape is a non or semi conductive, non-woven and double sided swelling tape which contain super absorbent resin in natural white color and carbon impregnation black color.
      Swelling Tape

      Swelling Tape is a non or semi conductive, non-woven and double sided swelling tape which contain super absorbent resin in natural white color and carbon impregnation black color.
