Mica Tape (FLAVEN) is a Glass fabric or/and Polyester film supported mica tape with impregnated heat-resistant silicone resins and has Phlogopite, Muscovite and Synthetic types.
DijitalPort offers high mica content and excellent fireproof feature up to 1100°C which can be processing with high speed on tapping machines.
Mica tapes are commonly used for fireproof cables especially for subway, underground project, control cable and power plants.
Type & Structures
Flaven MP & MR
Phlogopite Mica
Glass fabric or/and Polyester film supported brown color tape.
Materials & Thickness
Phlogopite Tape: 100, 115, 120, 135, 140 and 155µm
Applications
Subway, Underground, Control Cables.
Also Known As
Mica Strip.
Flaven MM
Muscovite Mica
Glass fabric or/and Polyester film supported grey color tape.
Materials & Thickness
Muscovite Tape: 100, 115, 120, 130 and 135µm
Applications
Subway, Underground, Control Cables.
Also Known As
Muscovite Mica Strip.
Flaven MS
Synthetic Tape
Glass fabric or/and Polyester film supported white color tape.
Materials & Thickness
Synthetic Tape: 100, 115, 120, 130 and 135µm
Applications
Subway, Underground, Control Cables.
Also Known As
Synthetic Mica Strip.
Flaven Special
Special Request for Mica Tape
If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.
Type & Structures
PHLOGOPITE
Flaven MP & MR
Phlogopite Mica
Glass fabric or/and Polyester film supported brown color tape.
Materials & Thickness
Phlogopite Tape: 100, 115, 120, 135, 140 and 155µm
Applications
Subway, Underground, Control Cables.
Also Known As
Mica Strip.
MUSCOVITE
Flaven MM
Muscovite Mica
Glass fabric or/and Polyester film supported grey color tape.
Materials & Thickness
Muscovite Tape: 100, 115, 120, 130 and 135µm
Applications
Subway, Underground, Control Cables.
Also Known As
Muscovite Mica Strip.
SYNTHETIC
Flaven MS
Synthetic Tape
Glass fabric or/and Polyester film supported white color tape.
Materials & Thickness
Synthetic Tape: 100, 115, 120, 130 and 135µm
Applications
Subway, Underground, Control Cables.
Also Known As
Synthetic Mica Strip.
SPECIAL REQUEST & REQUEST FORM
Flaven Special
Special Request for Mica Tape
If you have a special request, we will be pleased to work with your design engineers to deliver the right product for your requirements.
MEDIA GALLERY
MEDIA GALLERY
Rewinding & Packing
Inside Diameter
76.2, 120 & 152.4mm
IC
Outside Diameter
Max.700mm Roll
DC
Tape Width
Min. 5mm
BG
Core Material
Paper & Plastic
M
Inside Diameter
76.2mm
IC
Outside Diameter
Max.460mm Roll
DC
Tape Width
Min. 4mm
BG
Core Material
Paper & Plastic
M
Winding Length
40 – 350mm
SG
Core Length
40 – 350mm
MG
Inside Diameter
76.2mm
IC
Outside Diameter
Max.460mm Roll
DC
Tape Width
Min. 4mm
BG
Core Material
Paper & Plastic
M
Winding Length
40 – 100mm
SG
Core Length
40 – 100mm
MG
Rewinding & Packing

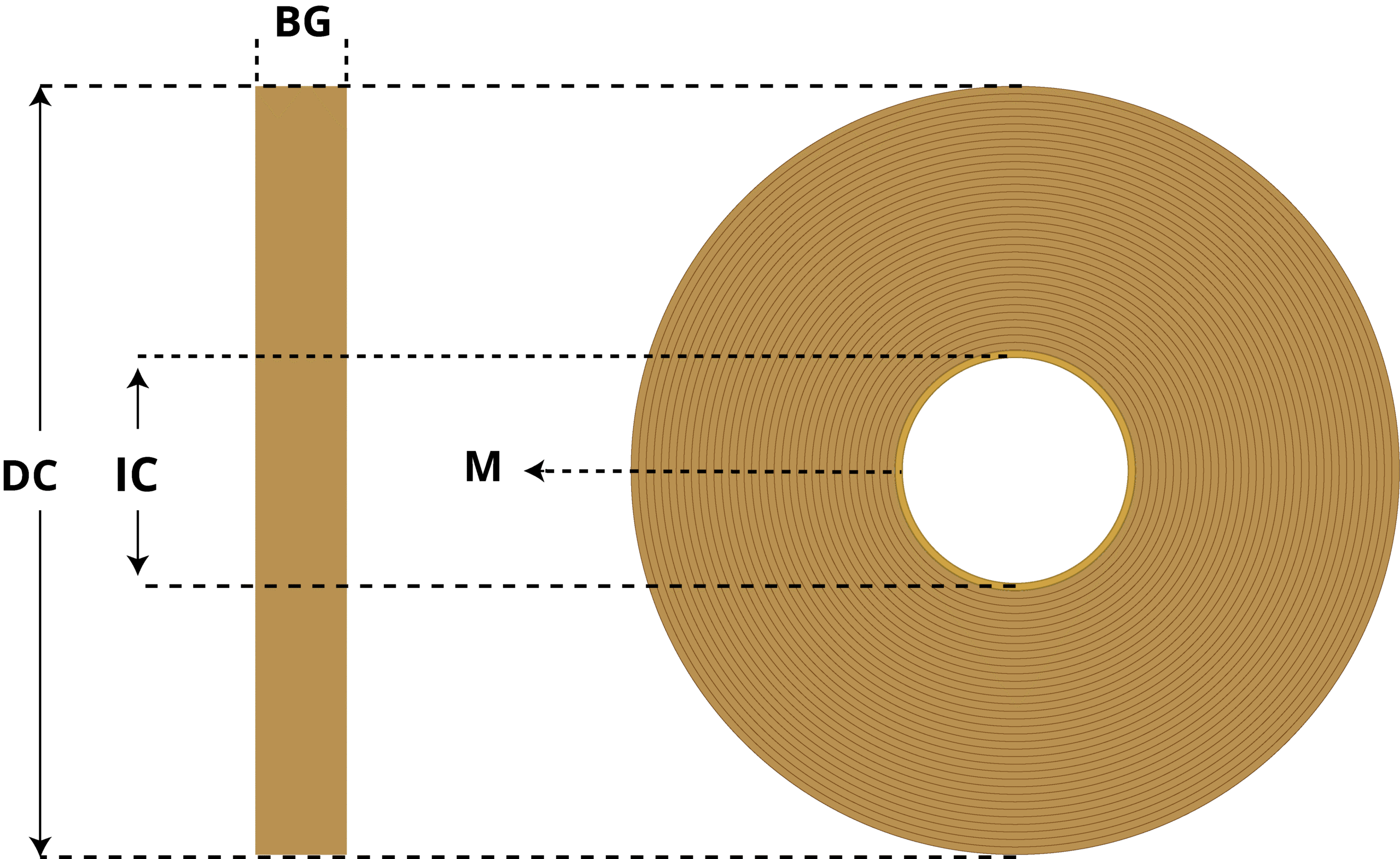

PAD (DISC) REWINDING
Inside Diameter
76.2, 120 & 152.4mm
IC
Outside Diameter
Max.700mm Roll
DC
Tape Width
Min. 5mm
BG
Core Material
Paper & Plastic
M

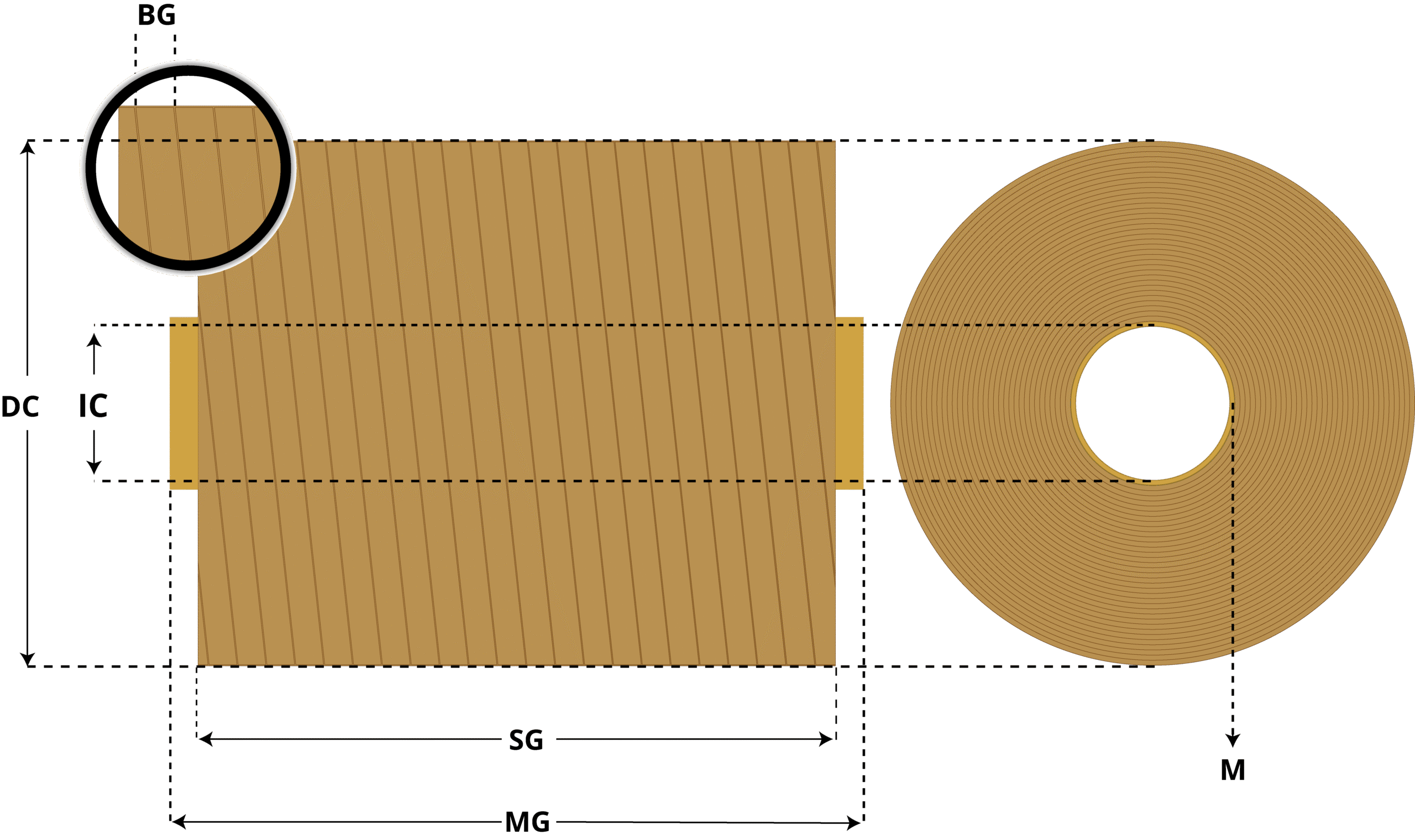

TRAVERSE (SPOOL) REWINDING
Inside Diameter
76.2mm
IC
Outside Diameter
Max.460mm Roll
DC
Tape Width
Min. 4mm
BG
Core Material
Paper & Plastic
M
Winding Length
40 – 350mm
SG
Core Length
40 – 350mm
MG

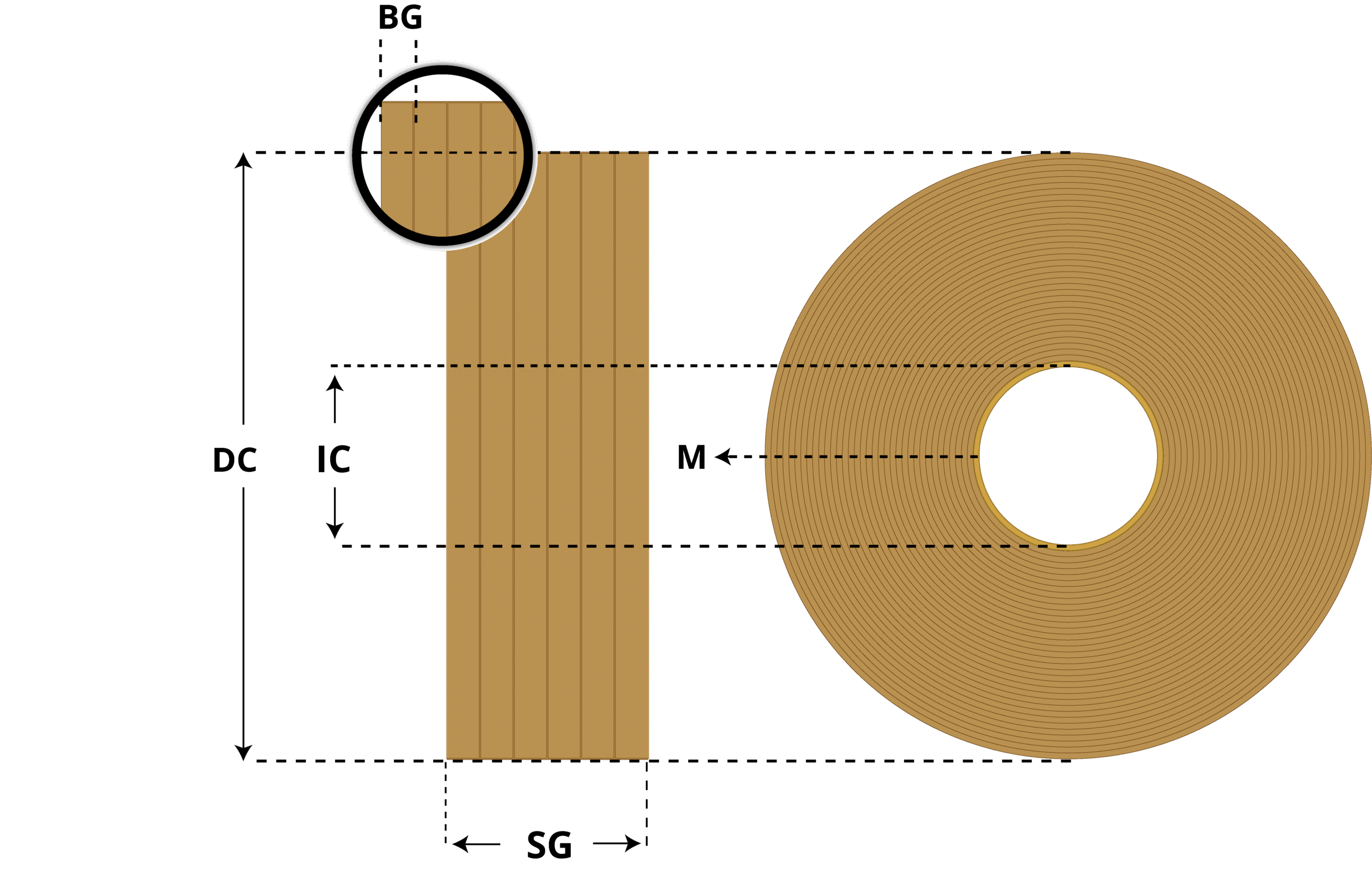

MINI (SPOOL) REWINDING
Inside Diameter
76.2mm
IC
Outside Diameter
Max.460mm Roll
DC
Tape Width
Min. 4mm
BG
Core Material
Paper & Plastic
M
Winding Length
40 – 100mm
SG
Core Length
40 – 100mm
MG
Downloads
Downloads
OTHER FIRE RESISTANT TAPES
Glass Fiber Tape
Glass Fiber Tape is a non-alkali E-glass class glass fiber woven tape which specially woven for heat-resistance up to 550°C.
